Mobile Assets Monitoring
3i Automated Vehicle Tracking System

KEEPING AN "i" ON YOUR ASSETS

3iAVTS is a specialised category of tracking system used to monitor land transport vehicles. The reliable web-based track and trace system is deployed for improved security, greater control over fleet operations and improved efficiency.

With 3iAVTS, users can load information on customers, products as well as web and mobile users into the system. Users can access the following information whenever and wherever required:

• Real time movement of all vehicles
• Onboard information of vehicle
• Time and activities performed on site
• Generation of reports



BENEFITS OF 3iAVTS

• Reduced operational, maintenance and communication costs
• Increased fleet utilisation, efficiency and productivity
• Enhanced driver and asset safety
• Increased competitive advantage in the market place through improved customer
• satisfaction with proof of delivery and estimated time of delivery



GENERAL SPECIFICATIONS OF TERMINAL STEPPII

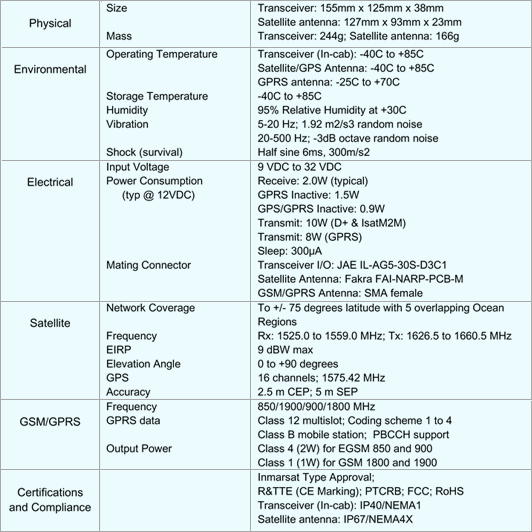

PRODUCT SPECIFICATIONS OF SURELINX 8100



SYSTEM ARCHITECTURE

Vehicle Tracking System Specifications

GSM: Global System for Mobile Communications

GSM is a second-generation digital mobile telephone standard using a variation of Time Division Multiple Access (TDMA). It is the most widely used of the three digital wireless telephone technologies - CDMA (Code Division Multiple Access), GSM and TDMA. GSM digitalizes and compresses voice data, then sends it down a channel with two other streams of user data, each in its own time slot. It operates at 900,1800 or 1,900MHz frequency bands.

GPRS: General packet radio service

General packet radio service (GPRS) is a packet-based wireless data communication service designed to replace the current circuit-switched services available on the second-generation GSM and TDMA IS-136 networks. GSM and TDMA networks were designed for voice communication, dividing the available bandwidth into multiple channels, each of which is constantly allocated to an individual call (circuit-switched). These channels can be used for data transmission, but they only provide a maximum transmission speed of around 9.6Kbps. Hence, GPRS has opened enormous opportunities for efficient, secure and cost effective global communication of Data, SMS, and voice.

GPS: GLOBAL POSITIONING SYSTEM

3i Technologies provide GPS to enable accurate navigation. GPS satellites continuously transmit radio messages to the 3i Mobile Terminal GPS receiver. We also offer GSM/GPS/GPRS with Virtual Map Sever that enable user to navigate vehicle position.
